Achromatic Waveplates
Feature and advantage:
- Stable Phase Retardation Across a Broad Wavelength Range
- Multi-Material Composite Structure
- Fixed Phase Retardation Types
- Moderate Angular Sensitivity
- Better Temperature Stability Than Multi-Order Waveplates
PRODUCT
Detail

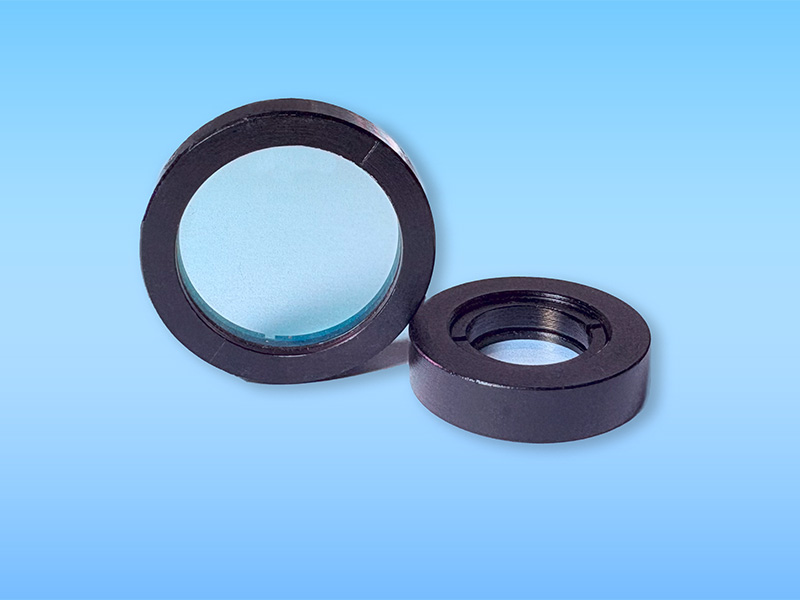

Achromatic waveplates use two birefringent crystalline materials Quartz and MgF2 to provide a constant phase shift independent of wavelength. The difference in dispersion between materials allows the arrangement of a slow phase shift over a broad wavelength range. Achromatic (Broadband) waveplates can be used to replace a number of single-wavelength quartz waveplates, making your system more convenient and compact.
|
Common Specifications
|
|
|
Material
|
Quartz and MgF2
|
|
Diameter Tolerance (mm)
|
+0.0/-0.2 (General)
|
|
Wavefront distortion
|
λ/4
|
|
Retardation tolerance
|
λ/100
|
|
Surface Quality
|
20/10
|
|
Parallelism
|
3 sec.
|
|
Coating
|
AR Coating, Ravg<0.5%
|
Standard Wavelength Range： 450~680nm, 700~1000nm，950~1300nm, 1200~1650nm

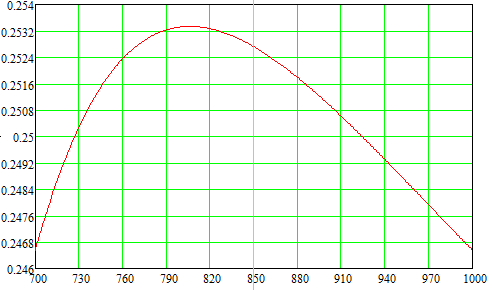

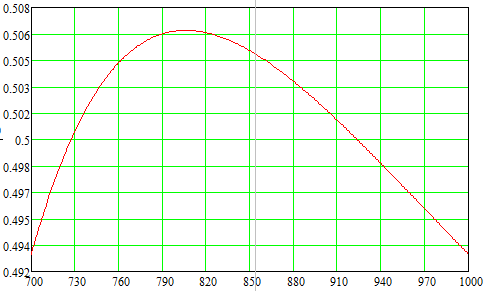

Achromatic Waveplate Retardation Curves：
 |
 |
Standard Sizes for choose.
|
Quarter
|
Half
|
Mount diameter
|
CA
|
Mount thickness
|
|
P/N
|
P/N
|
(mm)
|
(mm)
|
(mm)
|
|
AWP 210Q
|
AWP 210H
|
25.4
|
10
|
8
|
|
AWP 212Q
|
AWP 212H
|
25.4
|
12.7
|
8
|
|
AWP 215Q
|
AWP 215H
|
25.4
|
15
|
8
|
|
AWP 220Q
|
AWP 220H
|
30
|
20
|
8
|
|
AWP 225Q
|
AWP 225H
|
30
|
23.5
|
8
|
