Polarization Beamsplitter
Feature and advantage:
- Compact Cube Structure
- Polarization-Dependent Beam Splitting
- Broadband or Narrowband Operation
- Efficient Light Utilization
PRODUCT
Detail

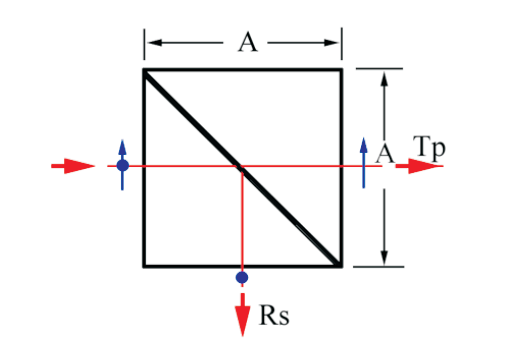

A polarizing beam splitter (PBS) is an optical component that separates unpolarized light into two orthogonal, linearly polarized beams: one transmitted (P-polarized) and one reflected (S-polarized). These components are essential in various optical systems, including those requiring polarization-based separation of light or for isolating specific polarization state. Cube beamsplitters are constructed using two typically right angle prisms . The hypotenuse surface of one prism is coated with PBS coating, and the two prisms are cemented together so that they form a cubic shape.
|
Common Specifications
|
|
|
Material
|
H-K9L,H-ZF1 or H-ZF2 for broadband
|
|
Diameter Tolerance (mm)
|
+0.0/-0.2 (General)
|
|
Flatness
|
λ/4
|
|
Surface Quality
|
60/40
|
|
Beam Deviations
|
3 arc min.
|
|
Extinctio Ratio
|
>100:1
|
|
Transmittance
|
Tp>95% &Ts<1%
|
|
Reflectance
|
Rs>99% &Rp<5%
|
|
Coating
|
Hypotenuse PBS coating, input and output sides AR coating
|
Standard Wavelength Narrowband： 488,532,632.8,850,980, 1064,1310,1550nm
Standard Wavelength Broadband： 450-680, 650-850，900-1200，1250-1570,1500-1610nm
Standard sizes are listed below. Custom-made other wavelength ranges is available.
|
Narrowbad P/N
|
Broadband P/N
|
Sizes（mm）
|
|
PBS1101
|
PBS5201
|
3.2×3.2×3.2
|
|
PBS1102
|
PBS5202
|
5×5×5
|
|
PBS1103
|
PBS5203
|
10×10×10
|
|
PBS1104
|
PBS5204
|
12.7×12.7×12.7
|
|
PBS1105
|
PBS5205
|
15×15×15
|
|
PBS1106
|
PBS5206
|
20×20×20
|
|
PBS1107
|
PBS5207
|
25.4×25.4×25.4
|
|
PBS1108
|
PBS5208
|
38.1×38.1×38.1
|
|
PBS1109
|
PBS5209
|
50.8×50.8×50.8
|
