Dual Wavelengths Waveplates

Dual Wavelengths Waveplates

Feature and advantage:

  • Dual-Wavelength Compatibility
  • Wavelength-Specific Phase Retardation
  • Single Plate
  • High damage threshold is available

PRODUCT
Detail

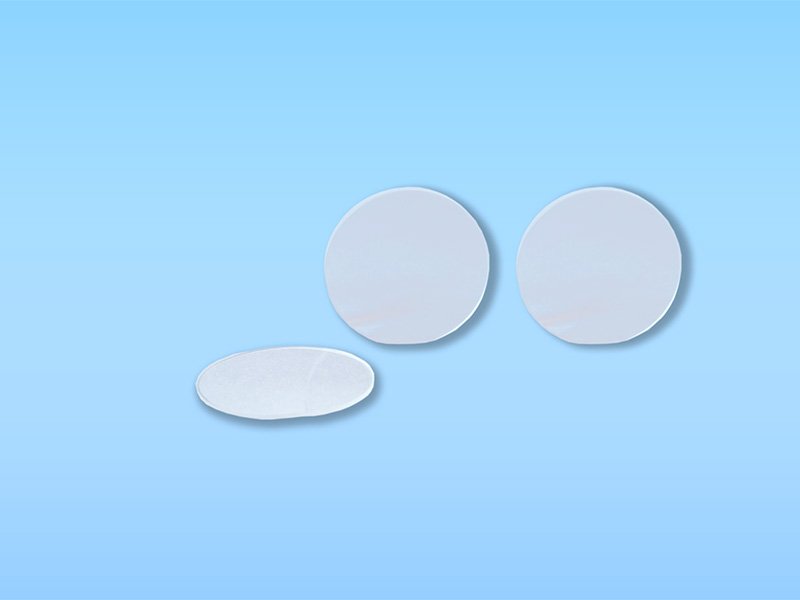

A dual-wavelength waveplate is a special type of multi-stage waveplate. It is made of materials with birefringence and can achieve the required phase delay for two wavelengths simultaneously. It is widely used in solid-state frequency doubling lasers to improve conversion efficiency, and can also be used in optical systems where phase control for two specific wavelengths is required, such as some dual-wavelength laser processing and dual-wavelength optical communication fields.
Common Specifications
Material
Quartz

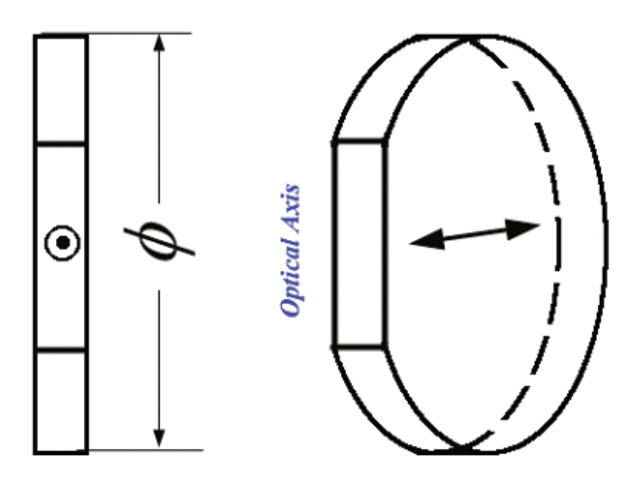

Diameter Tolerance (mm)
+0.0/-0.2 (General)
Clear Aperture
>90%
Wavefront distortion
λ/8
Retardation tolerance
λ/300
Surface Quality
20/10
Parallelism
3 sec.
Coating
AR Coating, R<0.2%
Standard retardation
λ @1064nm + λ/2 @532nm orλ/2 @1064nm + λ @532nm





Enlumen provides customized sizes and wavelengths.
