Mechanical parts
Features and advantages:
- Protect and support optical components
- Reduce stray light
- Prevent optical components from shifting
- Can be customized with mechanical structure according to the requirement
PRODUCT
Detail

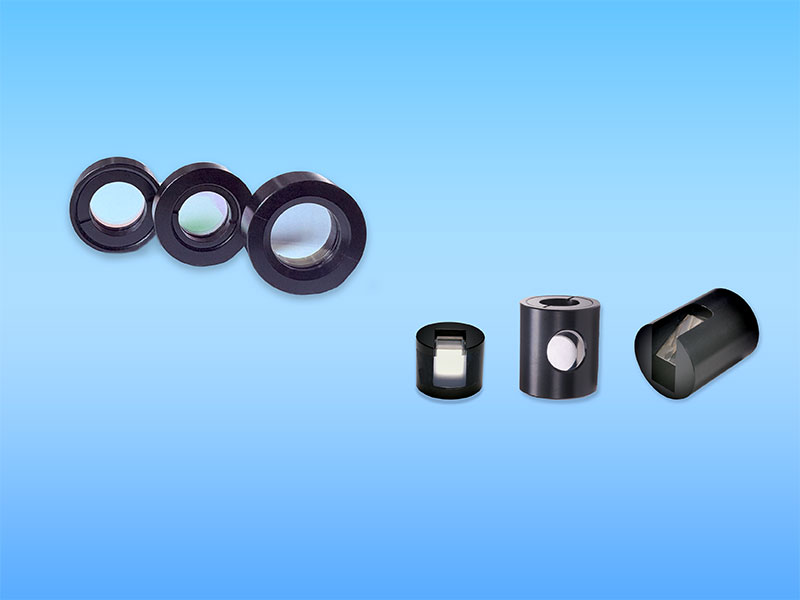

Enlumen provides mechanical parts that are compatible with optical components, such as waveplate holders, beam splitting prism holders, crystal holders, etc.
We offer standard brackets for customers to choose from, and can also customize them according to requirements.

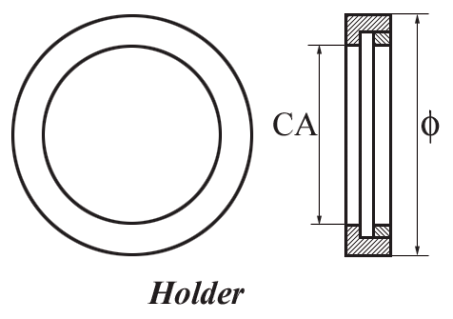

Waveplate Holder
Material: Anodized black aluminum alloy.Outer diameter tolerance: +/-0.1mm
Thickness tolerance: +/-0.1mm
|
P/N
|
Diameter(mm)
|
Thickness(mm)
|
Waveplate Size(mm)
|
Clear aperture(mm)
|
|
WH2508
|
25.4
|
6
|
8
|
7
|
|
WH2510
|
25.4
|
6
|
10
|
9
|
|
WH2512
|
25.4
|
6
|
12.7
|
11.5
|
|
WH2515
|
25.4
|
6
|
15
|
13.5
|
|
WH2520
|
25.4
|
6
|
20
|
18
|
Rotating holder: Enlumen provides rotating holders for the waveplates.

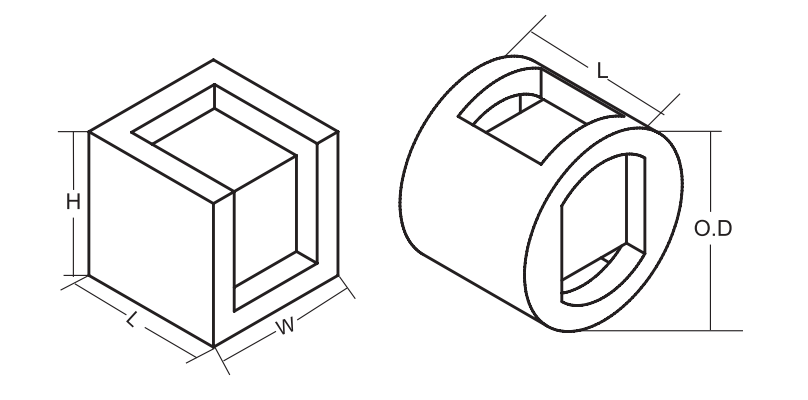

Cubes Beamsplitter Holder: Enlumen provides standard sizes holder for cubes.
Round Holder:
|
P/N
|
Diameter(mm)
|
Thickness(mm)
|
Cube Sizes
|
|
MCB2010
|
25.4
|
20
|
10x10x10
|
|
MCB2012
|
25.4
|
20
|
12.7x12.7x12.7
|
|
MCB2015
|
30
|
25
|
15x15x15
|
|
MCB2020
|
38
|
30
|
20x20x20
|
|
MCB2025
|
43
|
30
|
25.4x25.4x25.4
|
Square Holder:
|
P/N
|
Width(mm)
|
Height(mm)
|
Length(mm)
|
Cubes Sizes(mm)
|
|
MCB1010
|
25.4
|
25.4
|
25.4
|
10x10x10
|
|
MCB1012
|
25.4
|
25.4
|
25.4
|
12.7x12.7x12.7
|
|
MCB1015
|
25.4
|
25.4
|
25.4
|
15x15x15
|
|
MCB1020
|
30
|
30
|
30
|
20x20x20
|
|
MCB1025
|
38
|
38
|
38
|
25.4x25.4x25.4
|
Crystal Holder: Enlumen also provides crystal holders. Usually, they are circular with an outer diameter of 25.4mm. The internal structure is designed in house.
Other mechanical parts for optical components are also available.
