Beamsplitter Cubes
Feature and Advantage:
- Stable Structure
- Minimal Stray Light
- Customization Splitting Ratio
- Broadband Wavelength range
PRODUCT
Detail

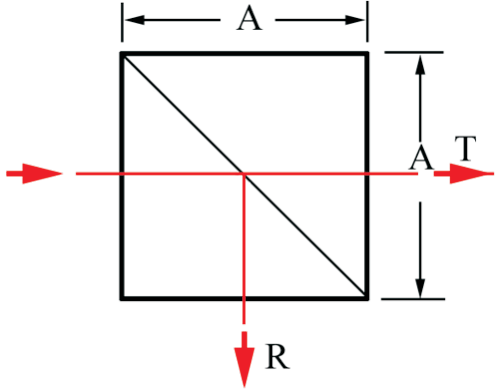

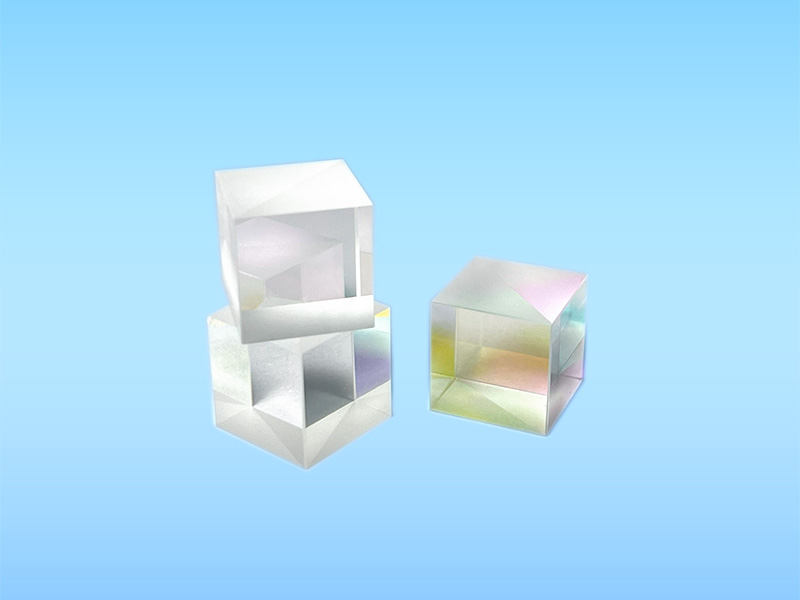

A cube beamsplitter is an optical component. It is constructed by cementing two right-angle prisms together to create a cubic structure.One hypotenuse surface with partial reflection coating. Its core function is to split the incident light in a specific ratio (for example, a 50:50 cube-shaped beam splitter will transmit 50% of the incident light's energy and reflect 50% of it). It is widely used in fields such as optical interferometric measurement, laser processing and optical systems, spectral analysis and measurement.
|
Standard Specifications
|
|
|
Material
|
N-BK7 or H-K9L glassed
|
|
Dimension Tolerance (mm)
|
±0.2
|
|
Surface Quality
|
60/40
|
|
Clear Aperture
|
>90%
|
|
Beam Deviation
|
<3arc min.
|
|
Flatness (per 25mm@633nm)
|
<λ/4
|
|
T/R
|
Typical 50/50%±5%（random polarization）
|
|
Coating
|
One hypotenuse with PR coating, input and output sides AR coating
|
|
Wavelength
|

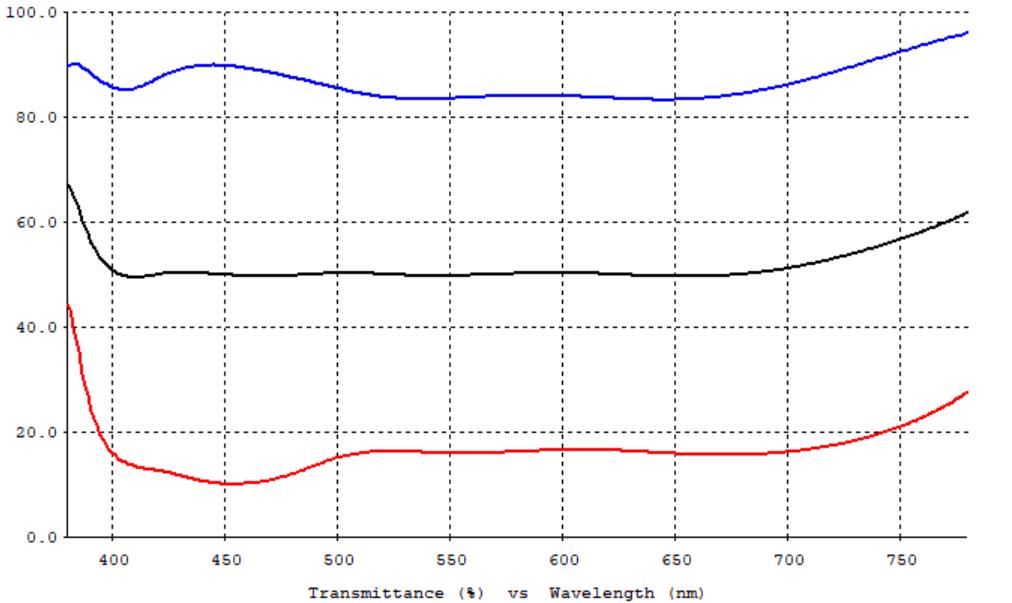

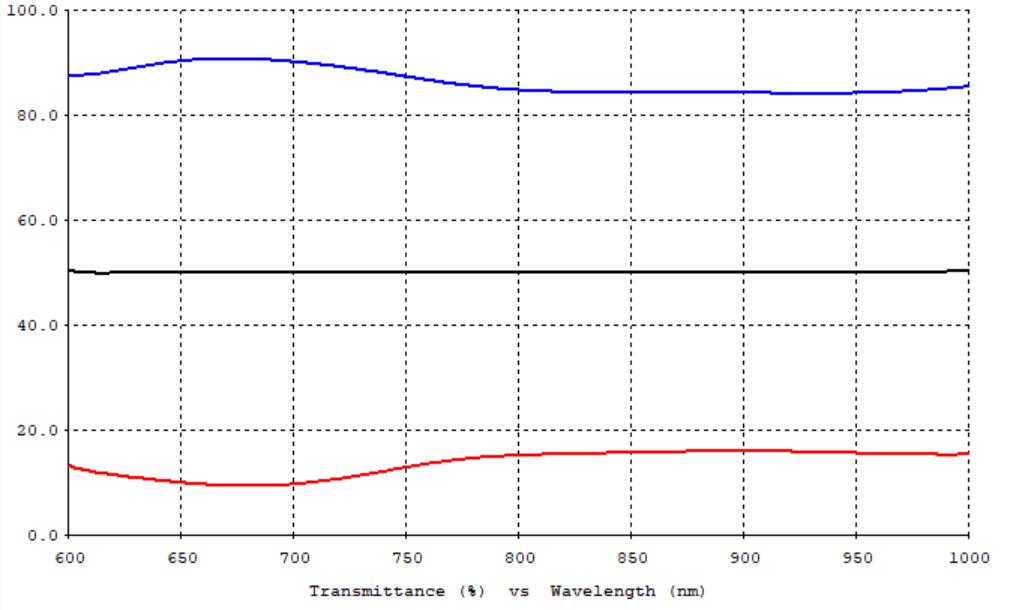

Narrow band 488，532，633，808，1064，1550nm ect.；Broadband:450-650，650-900，900-1200，1200-1550，1500-1610nm
|
|
Sizes(mm)
|
Narrowband
|
Broadband
|
|
Part No.
|
Part No.
|
|
|
3.2x3.2x3.2
|
BSC1101
|
BSC1201
|
|
5x5x5
|
BSC1102
|
BSC1202
|
|
10x10x10
|
BSC1103
|
BSC1203
|
|
12.7x12.7x12.7
|
BSC1104
|
BSC1204
|
|
15x15x15
|
BSC1105
|
BSC1205
|
|
20x20x20
|
BSC1106
|
BSC1206
|
|
25.4x25.4x25.4
|
BSC1107
|
BSC1207
|
Order information:
BSC1201-900-1200nm, that means sizes are 3.2mm，wavelength 900-1200nm，splitting ratio 50:50，random polarization.
