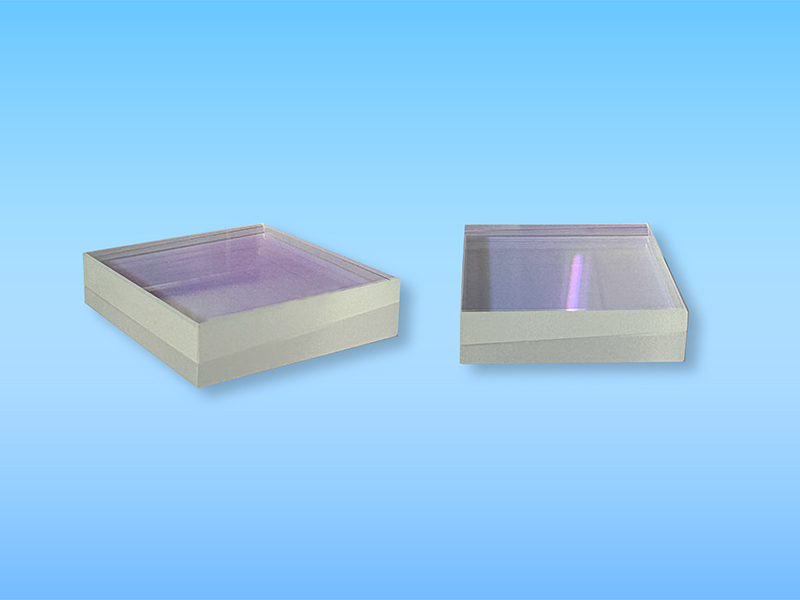

Advanced Quartz Lyot Depolarizers
Features and Advantages:
- No need for optical axis alignment
- Used to convert polarized light into non-polarized light
- Suitable for monochromatic light and wide-spectrum light sources
- Available in two types: cemented and optical bonded
- Better performance
PRODUCT
Detail
Quartz Lyot Depolarizer is used to convert a polarized incoming monochromatic light beam into a pseudo-random polarized beam. Incoming light beam with broadband source will also be converted by the depolarizer that varies spatially and wavelength. Quartz Lyot Depolarizer is constructed of two crystal quartz wedges. The optical axis of each wedge is along the plane, whereas the orientation angle between the two wedges is 45°. The result is then a variable retardation plate over the aperture which produces depolarization for all wavelength band.
|
Common Specifications
|
|
|
Material
|
Quartz and Fused Silica
|
|
Wavelength range
|
220-1100nm,1100-2600nm
|
|
Parallelism
|
1 arcmin
|
|
Surface Quality
|
60-40
|
|
Flatness
|
λ/8@633nm
|
|
Peack Transmittance
|
92%（Uncoated）
|
|
Coating
|
Standard product is uncoated, custom made is available
|
|
Mount
|
Standard product is unmounted, custom made is available
|
Enlumen offers the following standard products for selection.
|
P/N
|
Sizes AXB(mm)
|
CA（mm）
|
Thickness(mm)
|
|
DAQ10
|
10
|
9
|
12.15
|
|
DAQ12
|
12.7
|
11.5
|
|
|
DAQ15
|
15
|
13.5
|
|
|
DAQ20
|
20
|
18.5
|
|
|
DAQ25
|
25.4
|
22
|
