Zero Order Waveplates
Feature and advantage:
- Wide Wavelength Bandwidth
- BetterTemperature Bandidth
- High-Precision Phase Control
- Broad Angular Incidence Tolerance
- Mounted is available for each type
PRODUCT
Detail
Zero-order waveplates are typically formed by superimposing two thin quartz crystals in an orientation where the optical axes are crossed to each other. Comparing to multi-order waveplates, the zero-order waveplate can maintain a more stable retardation over a wider wavelength range and is less affected by temperature changes.
|
Common Specifications
|
|
|
Material
|
Quartz
|
|
Diameter Tolerance (mm)
|
+0.0/-0.2 (General)
|
|
Clear Aperture
|
>90%
|
|
Wavefront distortion
|
λ/8
|
|
Retardation tolerance
|
See below table
|
|
Surface Quality
|
20/10
|
|
Parallelism
|
3 sec.
|
|
Coating
|
AR Coating, R<0.2%
|
Enlumen provides standard waveplate wavelenths listed as below. Also, provides customized wavelenths between 200 and 2300nm.
|
266
|
355
|
400
|
532
|
632.8
|
780
|
808
|
850
|
980
|
1064
|
1310
|
1480
|
1550
|

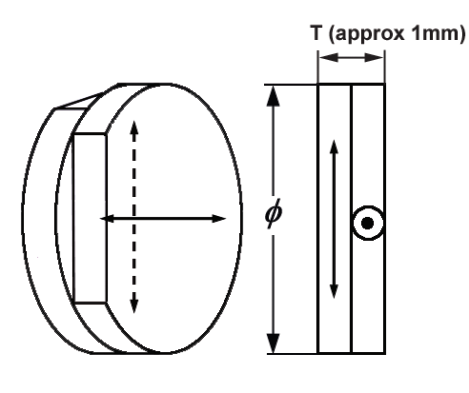

Cemented tyep: Two multi order waveplates cemented by epoxy together with optical axes crossed.
Standard sizes are below, order by indicating PN and wavelength
|
Quarter
|
Half
|
Diameter
|
|
|
P/N
|
P/N
|
(mm)
|
 |
|
WPC210Q
|
WPC210H
|
10
|
|
|
WPC212Q
|
WPC212H
|
12.7
|
|
|
WPC215Q
|
WPC215H
|
15
|
|
|
WPC220Q
|
WPC220H
|
20
|
|
|
WPC225Q
|
WPC225H
|
25.4
|
|
|
WPC230Q
|
WPC230H
|
30
|
Optically Contacted type：Two multi order waveplates optically contacted together with optical axes crossed.
Standard sizes are below, order by indicating PN and wavelength
|
Quarter
|
Half
|
Diameter
|
|
|
P/N
|
P/N
|
(mm)
|
|
|
WPO210Q
|
WPO210H
|
10
|
|
|
WPO212Q
|
WPO212H
|
12.7
|
|
|
WPO215Q
|
WPO215H
|
15
|
|
|
WPO220Q
|
WPO220H
|
20
|
|
|
WPO225Q
|
WPO225H
|
25.4
|
|
|
WPO230Q
|
WPO230H
|
30
|

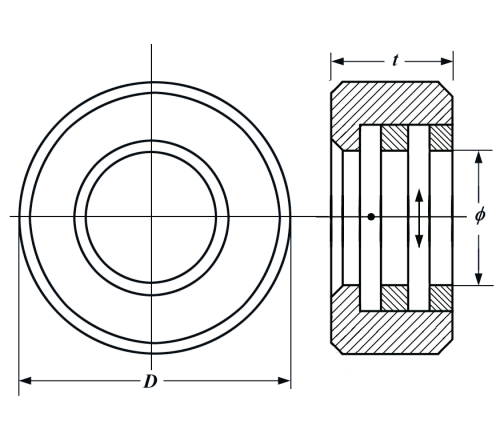

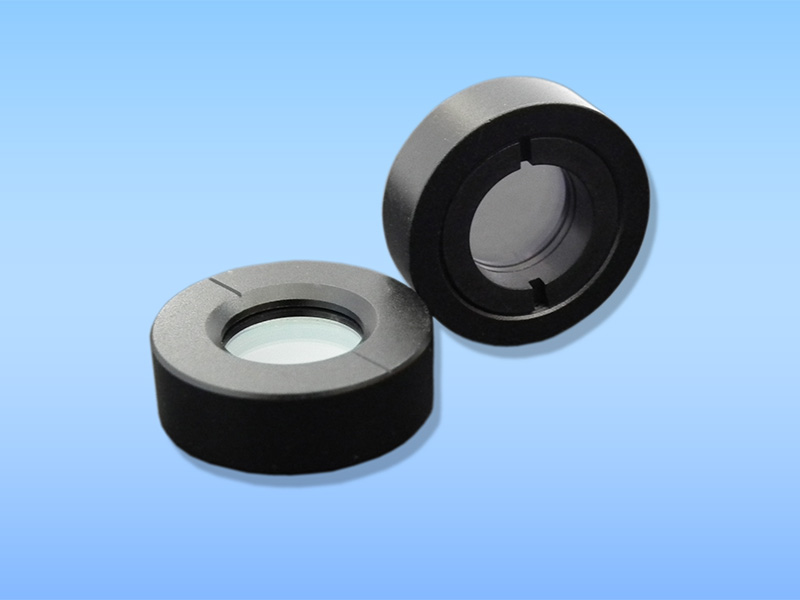

Air Spaced type：Two multi order waveplates mounted together, also we can use a glass ring to support. The greatest advantage is that it can withstand higher laser power.
Standard sizes are below, order by indicating PN and wavelength
|
Quarter
|
Half
|
Mount diaemter
|
CA
|
Mount thicknes
|
|
|
P/N
|
P/N
|
(mm)
|
(mm)
|
(mm)
|
 |
|
WPA210Q
|
WPA210H
|
25.4
|
10
|
8
|
|
|
WPA212Q
|
WPA212H
|
25.4
|
12.7
|
8
|
|
|
WPA215Q
|
WPA215H
|
25.4
|
15
|
8
|
|
|
WPA220Q
|
WPA220H
|
30
|
20
|
8
|
|
|
WPA225Q
|
WPA225H
|
30
|
23.5
|
8
|
